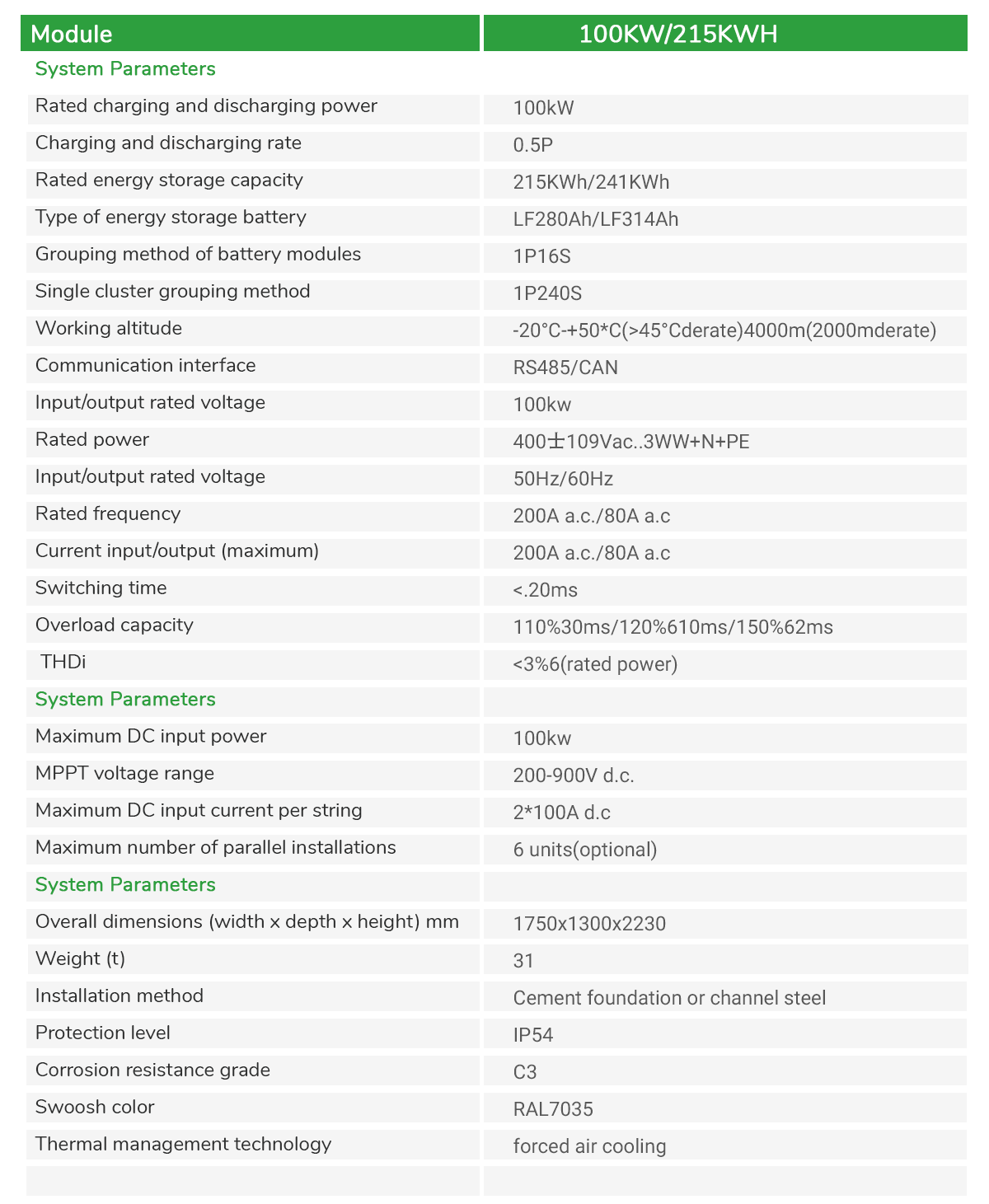

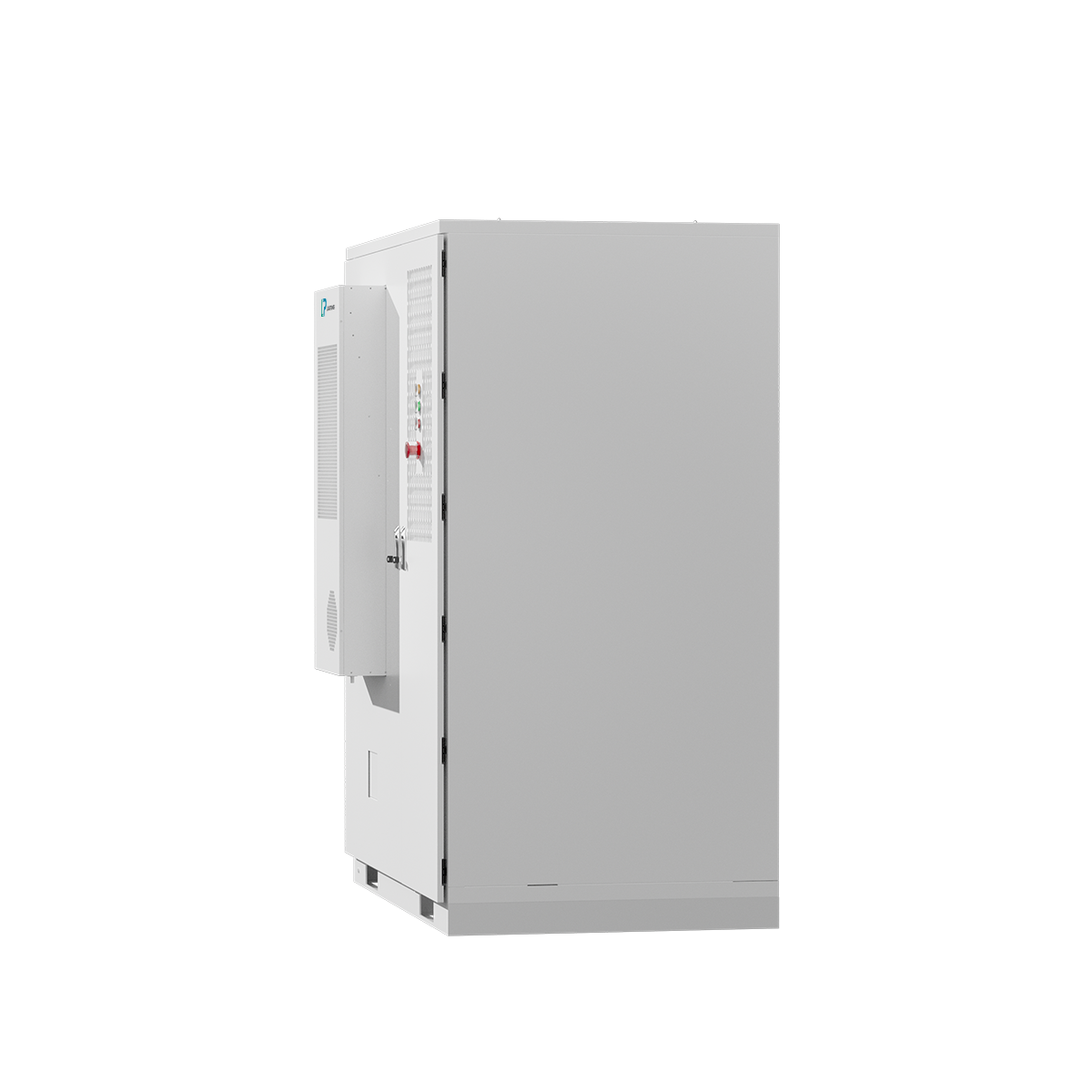

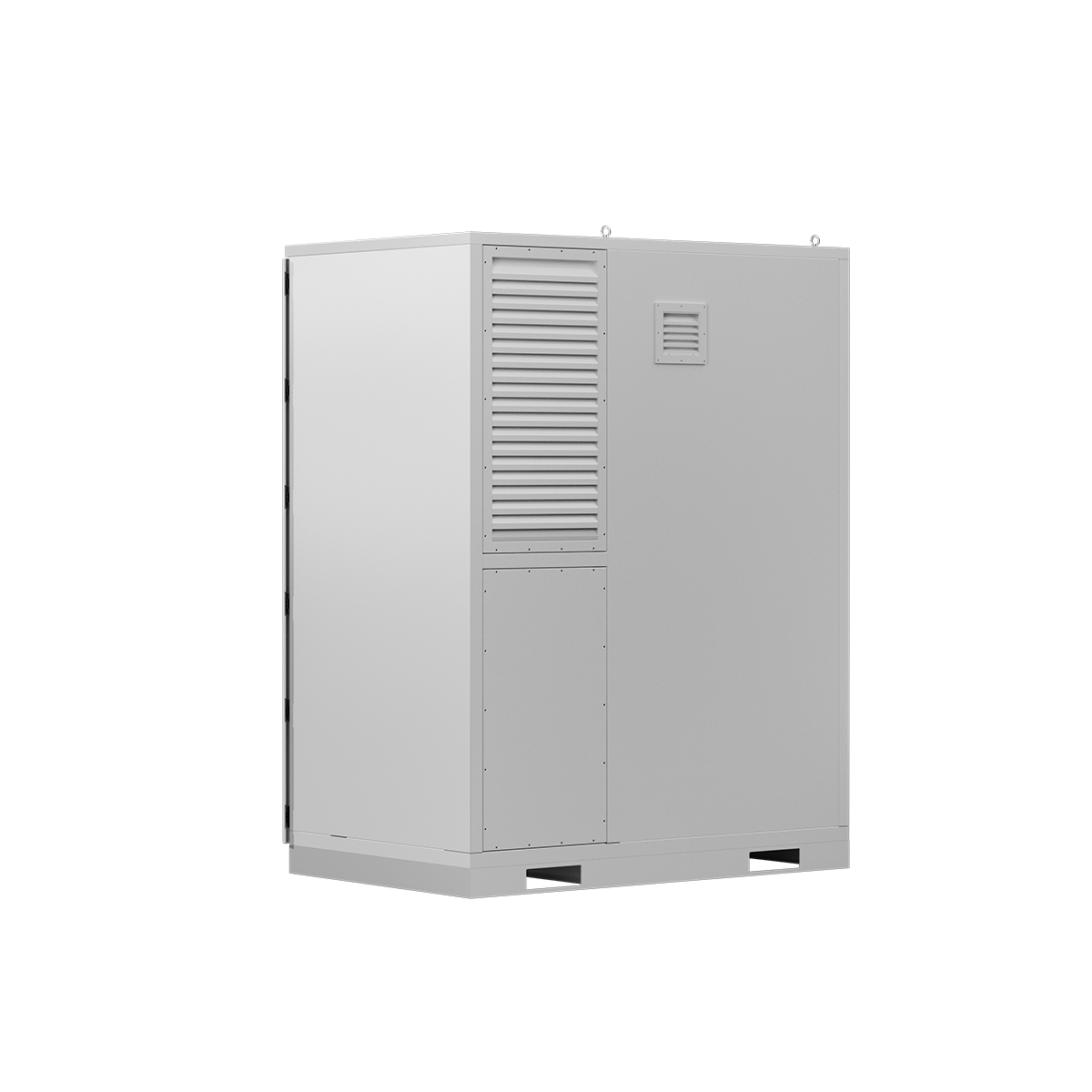

Model
LP-IESS-S215-00-A01
-
Cell Type
LF280Ah
-
Rated Charge and Discahrge power
100kW
-
Rated Storage Capacity
215kWh
-
Nominal Voltage
768V
-
Rated Capacity
280Ah
-
Charge and Discharge Rate
0.5P
-
Cluster Composition Mode
1P240S
-
Limited Charge Voltage
864V
-
Cut-off Voltage
672V
-
Max Continuous Charge Current
170A
-
Max Continuous Discharge Current
170A
-
Dimension
W1715mm*D1270mm* H2235mm
-
Weight
3000kg
